Understanding and Managing Ice Dams on Metal Roofs

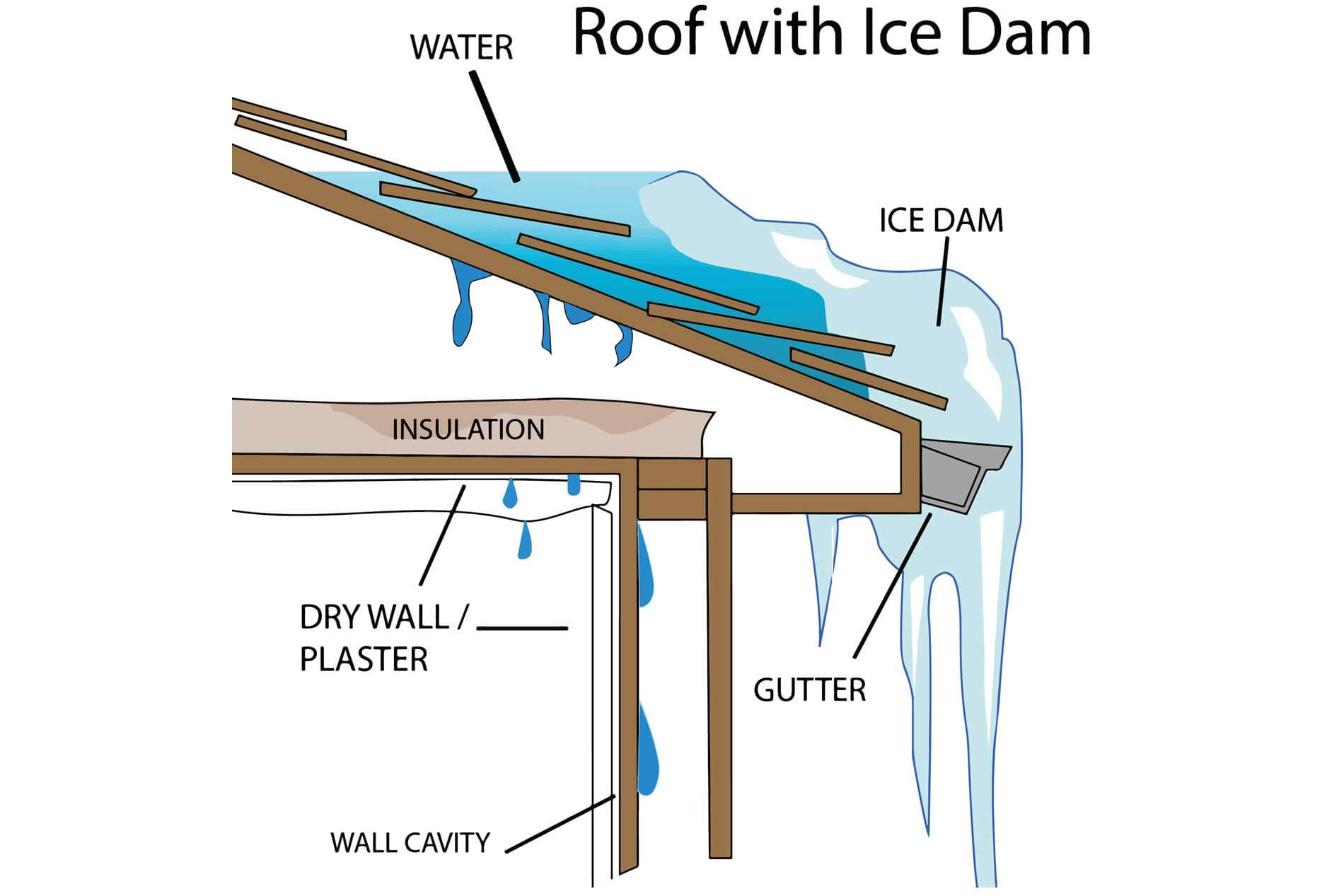

1. Snow Accumulation: Snow collects on the roof.
2. Heat Transfer: Heat from the inside of the home escapes, warming the central portions of the roof and causing the snow to melt.
3. Meltwater Movement: Meltwater flows to the lower, colder parts of the roof, such as the eaves, overhangs, or gutters.
4. Freezing and Thawing: The water refreezes upon contact with these colder areas. Over time, repeated freezing and thawing cycles create a wall of ice.

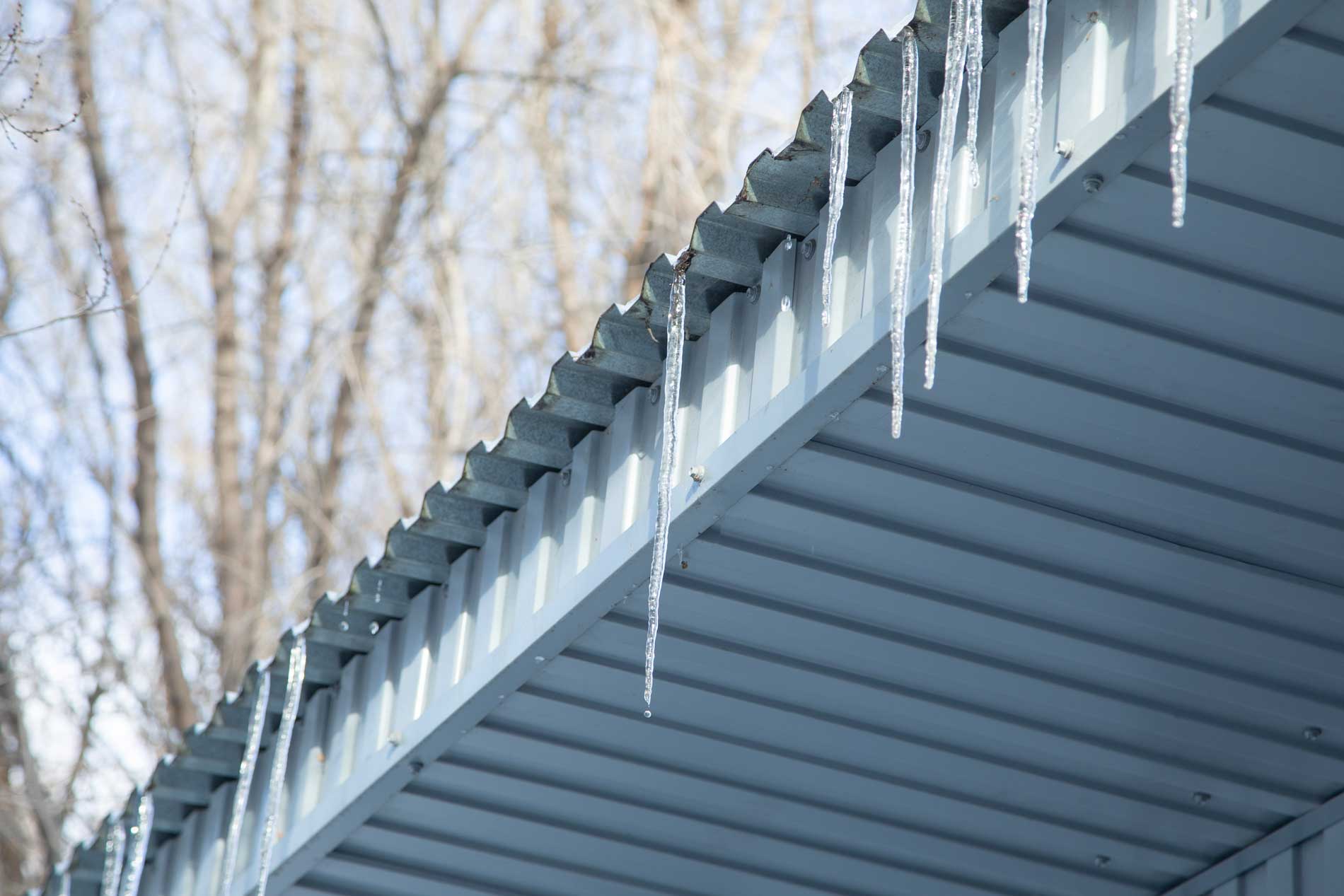

This ice dam blocks additional snowmelt from draining, resulting in accumulations that can cause both aesthetic and functional issues. Ice is heavy, and as it forms and expands, it can pull trim apart, impact gutter systems, and even compromise the seams of roof panels.

• Gutter Damage: Ice dams often form in gutters, leading to blockages and eventual failure under the weight of accumulated ice.
• Fascia Damage: Damaged gutters can pull on the fascia, stripping paint or even tearing it away.
• Roof System Damage: Severe ice dams can lift roof edges, compromising the entire roofing system.
• Interior Damage: Ice dams may allow water to seep into insulation and interior spaces, potentially leading to problems like black mold.

1. Steep-Slope Roof Design

• Recommendation: When building or designing a home in a cold climate, prioritize steep slopes (greater than a 3/12 pitch) for effective snow and water drainage.
• Why It Works: Steeper slopes shed snow and ice more efficiently, reducing the chances of ice dam formation.
• Design Inspiration: Roofs with steep pitches and broad eaves, like those commonly found in alpine regions, are excellent functional models.

2. Oversized Gutters

• Recommendation: Install larger gutters and downspouts to handle increased snow and water flow.
• Why It Works: Bigger gutters minimize the risk of clogs and ice buildup by allowing water to flow freely.
• Additional Considerations: Ensure the entire drainage system, including supports, can handle the increased load to prevent damage.

3. Heating Products

• Recommendation: Use heating cables along the edges of your roof to prevent ice dams.
• How They Work: These cables are equipped with sensors and controllers that activate based on temperature and moisture levels, heating the roof surface to prevent ice formation.
• Installation Note: Heating systems require a reliable power source. Consult your manufacturer for installation guidelines to avoid voiding warranties.

4. Ventilation and Insulation

• • Improved Insulation:
    • Prevent warm air from escaping into the attic, keeping the roof deck temperature consistent and reducing the freeze-thaw cycle.
    • Benefits: Lower energy costs and enhanced roof protection.
  • Adequate Ventilation:
    • Ensure proper airflow in the attic to expel warm air and maintain consistent roof temperatures.
    • Benefits: Prevents uneven warming of the roof, reducing ice dam formation.

5. Regular Maintenance and Inspections

• Frequency: Schedule roof inspections at least once a year, or after heavy snow or ice storms.
• Purpose: Ensure gutters and downspouts are clear and address minor issues before they escalate.
• Professional Help: Contractors can assess the severity of ice dams and recommend tailored solutions, such as a combination of oversized gutters and heating cables.
