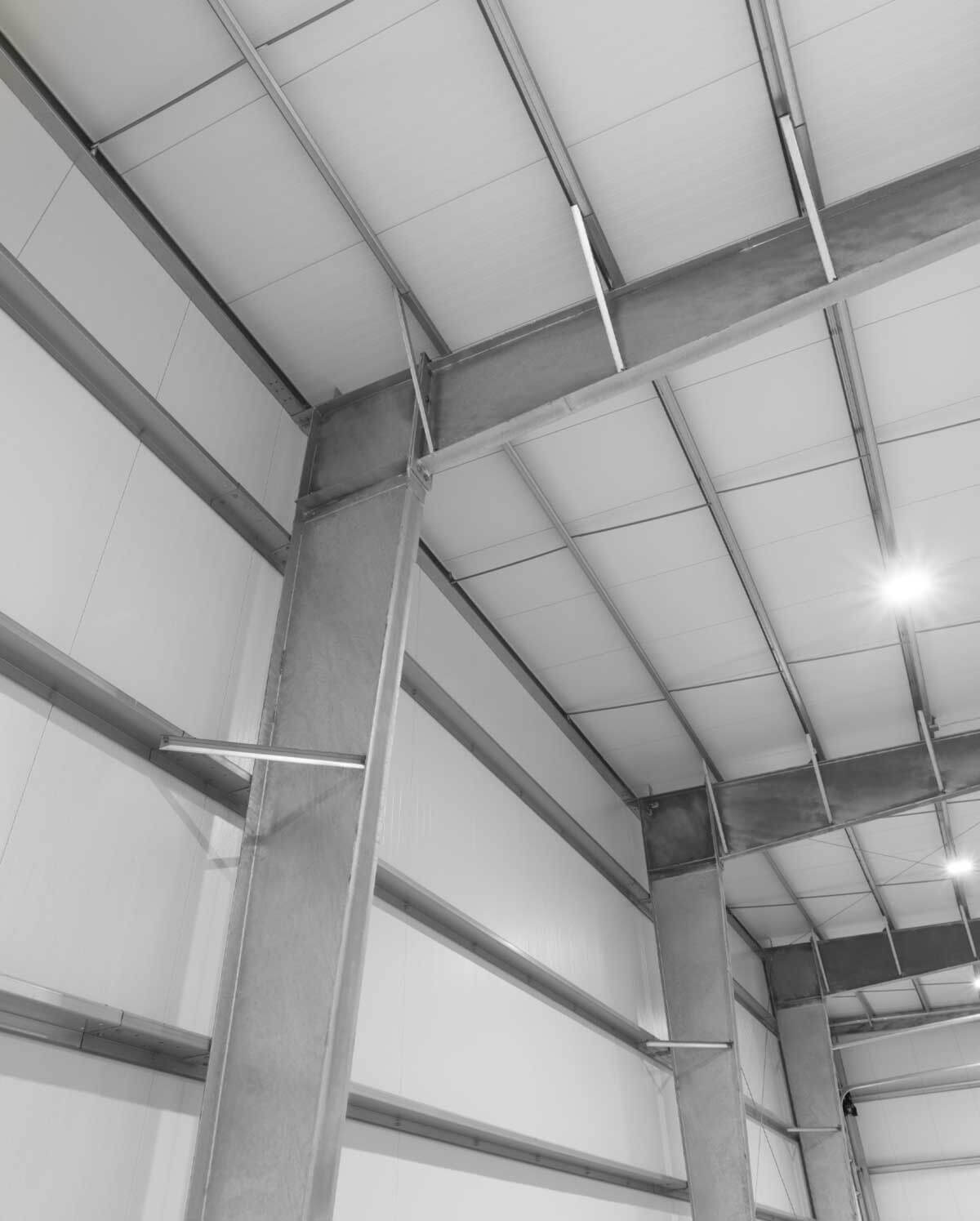

Insulated Metal Panels

Summit panels

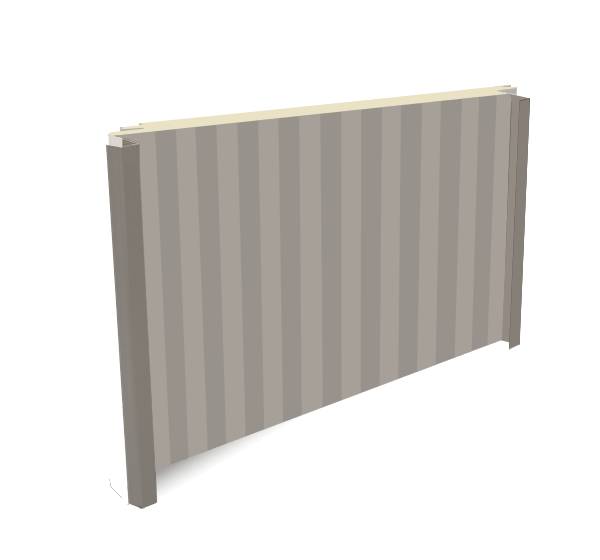

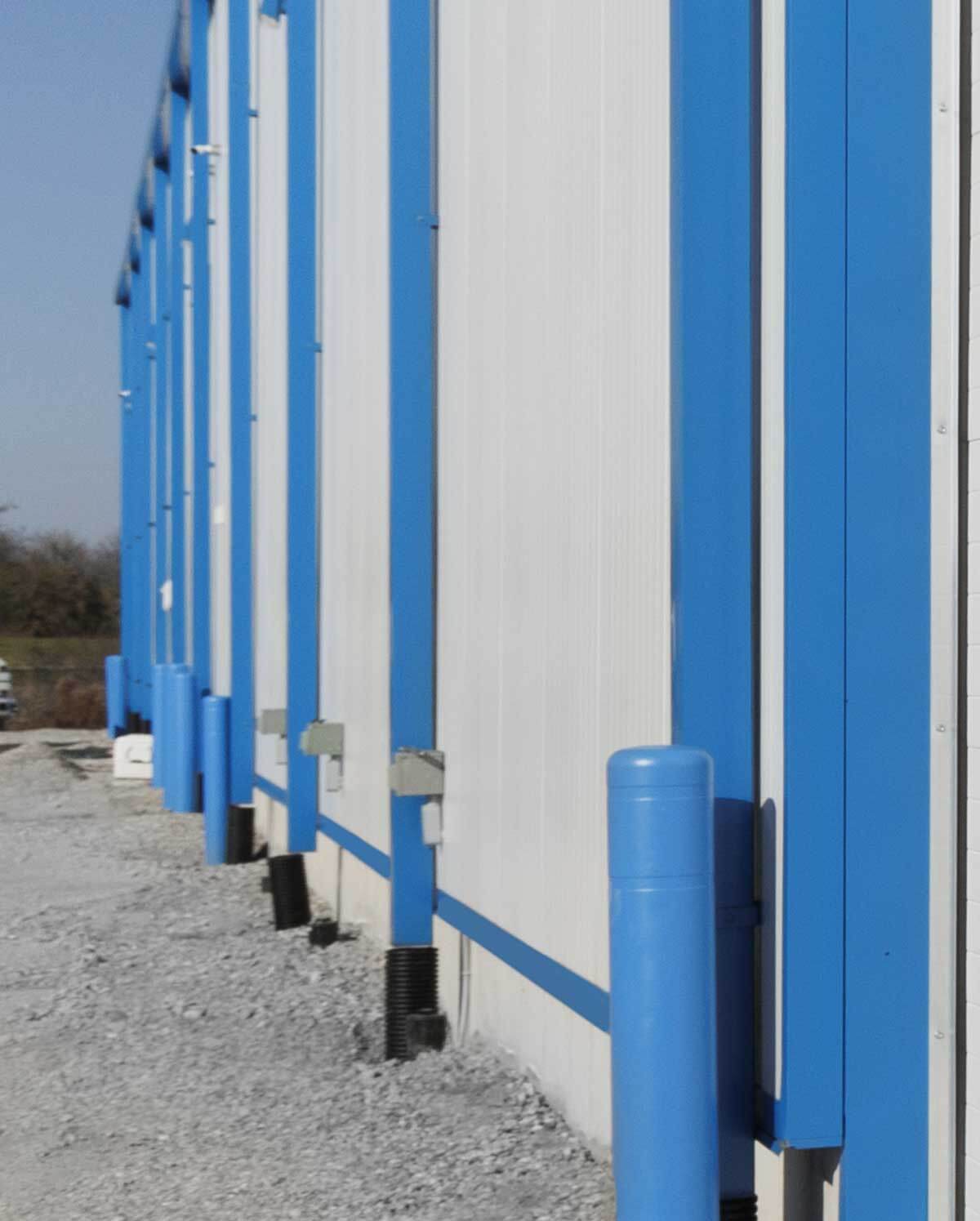

Horizon Wall Panels - Smooth

Summit panels

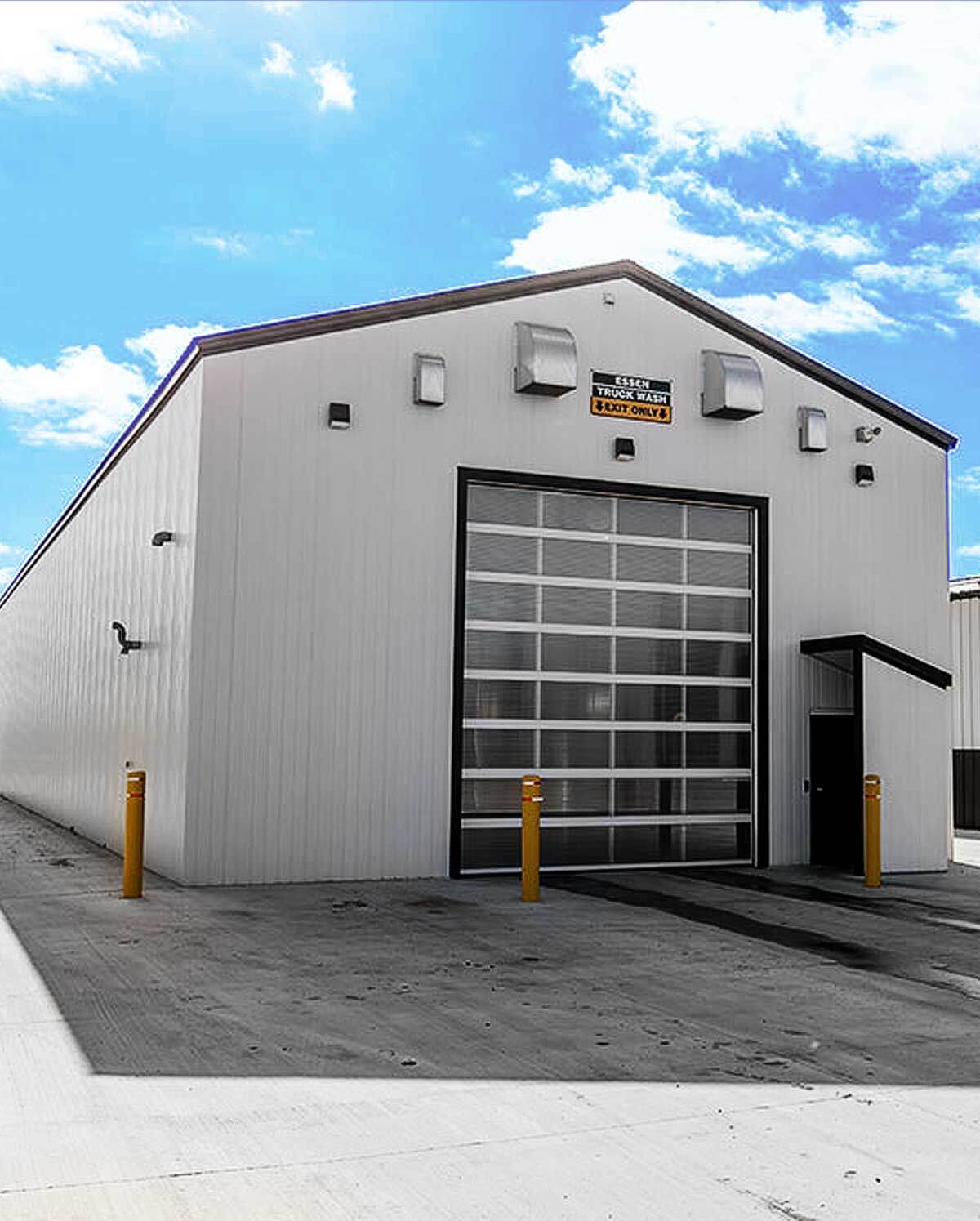

Horizon Wall Panels - Embossed

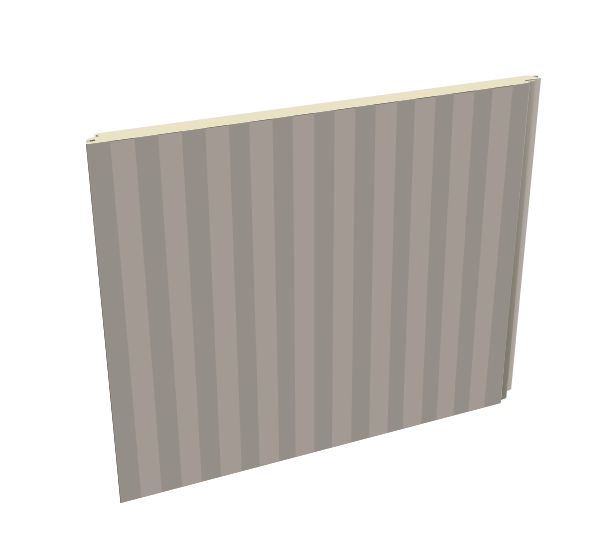

Horizon Wall - Mesa Smooth panels are produced with a standard Mesa profiled smooth steel face. These panels are an economical option for industrial and commercial walls, with added strength.

  • Coverage Width: 42” (1067mm).
  • Panel Lengths: 8’ to 52’ (2438mm to 15850mm).
  • Exterior Face: 22ga, 24ga, or 26ga Mesa Smooth galvanized G-90 (Z275) pre painted steel.
  • Interior Face: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options may be available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50



Horizon Wall - Mesa Light Embossed panels are produced with a standard Mesa profiled Light Embossed steel face. These panels are an economical option for industrial and commercial walls, with added strength from a double Mesa profile for long panel lengths.

  • Coverage Width: 42” (1067mm).
  • Panel Lengths: 8’ to 52’ (2438mm to 15850mm).
  • Exterior Face: 22ga, 24ga, or 26ga Mesa Light Embossed galvanized G-90 (Z275) pre painted steel
  • Interior Face: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50

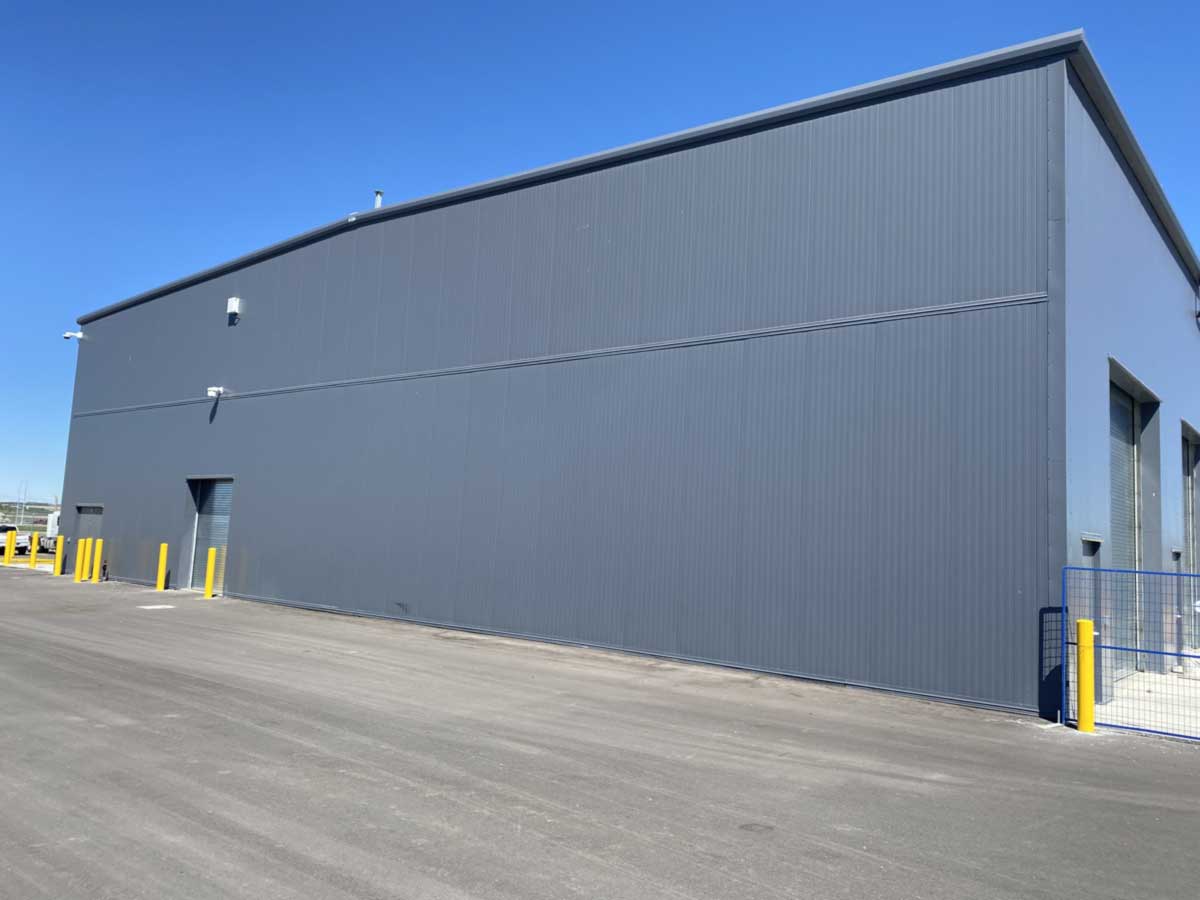

Westman Steel - HORIZON panel

Standard Exterior Colours

Regal White
Old Zinc Grey
Ash Grey
Weathered Copper
Sierra Tan
Charcoal

Premium Exterior Colours

Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hatford Green
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Zinc
Slate Grey
Black
  1. Colours may not appear exactly as shown above and may vary slightly.
  2. Please confirm prior to specifying, estimating or ordering.
  3. Final colour selection should be made from a steel colour sample.
  4. Colour selection may be subject to availability.
  5. Custom colours available upon request.

TESTING: INSULATED METAL PANELS

Standard Description Results
CAN/ULC S101 Standard Methods of Fire Endurance Tests of Building Construction and Materials 15-minute stay in place
CAN/ULC S102 Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies
Flame Spread < 25, Smoke Development < 200
CAN/ULC S126 Standard Method of Test for Fire Spread Under Roof-Deck Assemblies Complies
CAN/ULC S127 Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials Flame Spread < 350 foam core w/o steel skin
CAN/ULC S138 Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration Complies
ASTM E84 Standard Test Method for Surface Burning Characteristics of Building Materials Flame Spread < 25, Smoke Development < 200
NFPA 286 Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth Complies
ASTM E72 Standard Test Methods of Conducting Strength Tests of Panels for Building Construction See Load Charts for load/span and deflection tables
ASTM E1592 Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference See Load Charts
ASTM E1646 Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems No water penetration at 20 psf pressure differential
ASTM E1680 Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems 0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E283 Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen
0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E331 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference No water penetration at 20 psf pressure differential
ASTM C518 Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F
ASTM C1363 Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F

WALL LOAD SPAN TABLES

  • PRODUCT: Insulated Wall Panel
  • PROFILE: Mesa or Smooth
  • SERIES: Edge, Horizon
  • GAUGE: 26ga or heavier
  • FINISHED: Embossed or Smooth
Panel Thickness Design Criteria PSF
    4' 5' 6' 7' 8' 9' 10' 11' 12' 13' 14'
2" Thick (See Table Note #3) Bending/Shear 93 59 41 30 23 18 15 12 10
  Deflection (L/180) 47 41 33 27 22 19 16 14 12
  Connection 42 35 33 26 22 19 16 15 13

3" Thick Bending/Shear 126 101 84 68 52 41 33 27 23
  Deflection (L/180) 94 77 68 58 34 32 29 19 17
  Connection 57 45 38 33 29 25 23 20 19

4" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

5" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

6" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

TABLE NOTES:

  1. Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.
  2. Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.
  3. Connection strengths reflect a standard fastener pattern - (@) 1/4” - 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately. 2” wall panel utilize a flat clip. All other thicknesses utilize an angle clip.
  4. Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.
  5. Allowable loads assume a minimum bearing of 2”.
  6. Thermal Effects were not considered in analysis.
  7. The structural capacity of the supporting members were not considered.
  8. Bending/Shear and Deflection for 5” and 6” panels based on 4” capacity.

PANEL WEIGHTS & LENGTHS TABLE

  • Width: 42”
  • Profile: Mesa
  • Insulation Thickness: 2”, 3”, 4”, 5”, 6”
  • Exterior Facing: 22ga, 24ga, 26ga
  • Interior Facing: 22ga, 24ga, 26ga
  • Available Finish: Light Emboss

Panel Weights (PSF)

Panel Thickness (in.) Panel Width (in.) PSF
    26/26 24/26 22/26 26/24 24/24 22/24 26/22 24/22 22/22
2 42 2.23 2.48 2.73 2.48 2.73 2.98 2.73 2.98 3.23
3 42 2.44 2.69 2.94 2.69 2.94 3.19 2.94 3.19 3.44
4 42 2.65 2.90 3.15 2.90 3.15 3.40 3.15 3.40 3.65
5 42 2.85 3.10 3.35 3.10 3.35 3.60 3.35 3.60 3.85
6 42 3.06 3.31 3.56 3.31 3.56 3.81 3.56 3.81 4.06

Maximum Length based on colour (ft)

Panel Thickness (in.) Panel Width (in.) Edge 22ga Wall* Horizon 26ga/26ga Wall Skyline 24ga/26ga Roof
    Light Medium Dark Light Medium Dark Light Medium Dark
2 42 25' 25' 20' 38' 25' 16' 47' 36' 24'
3 42 30' 30' 20' 45' 35' 25' 50' 38' 30'
4 42 30' 30' 25' 50' 38' 28' 52' 41' 32'
5 42 32' 30' 25' 52' 41' 30' 52' 44' 34'
6 42 32' 30' 25' 52' 44' 32' 52' 47' 36'

*Smooth or Embossed

Light = Regal White

Medium = Sierra Tan, Parchment, Silver Metallic

Dark = All others

Based on 5’ support spacing for walls & 4’ support spacing for roofs

*Smooth or Embossed

Subject to change without notice. Please refer to our website, www.ubuildsb.com for current information.

Summit panels

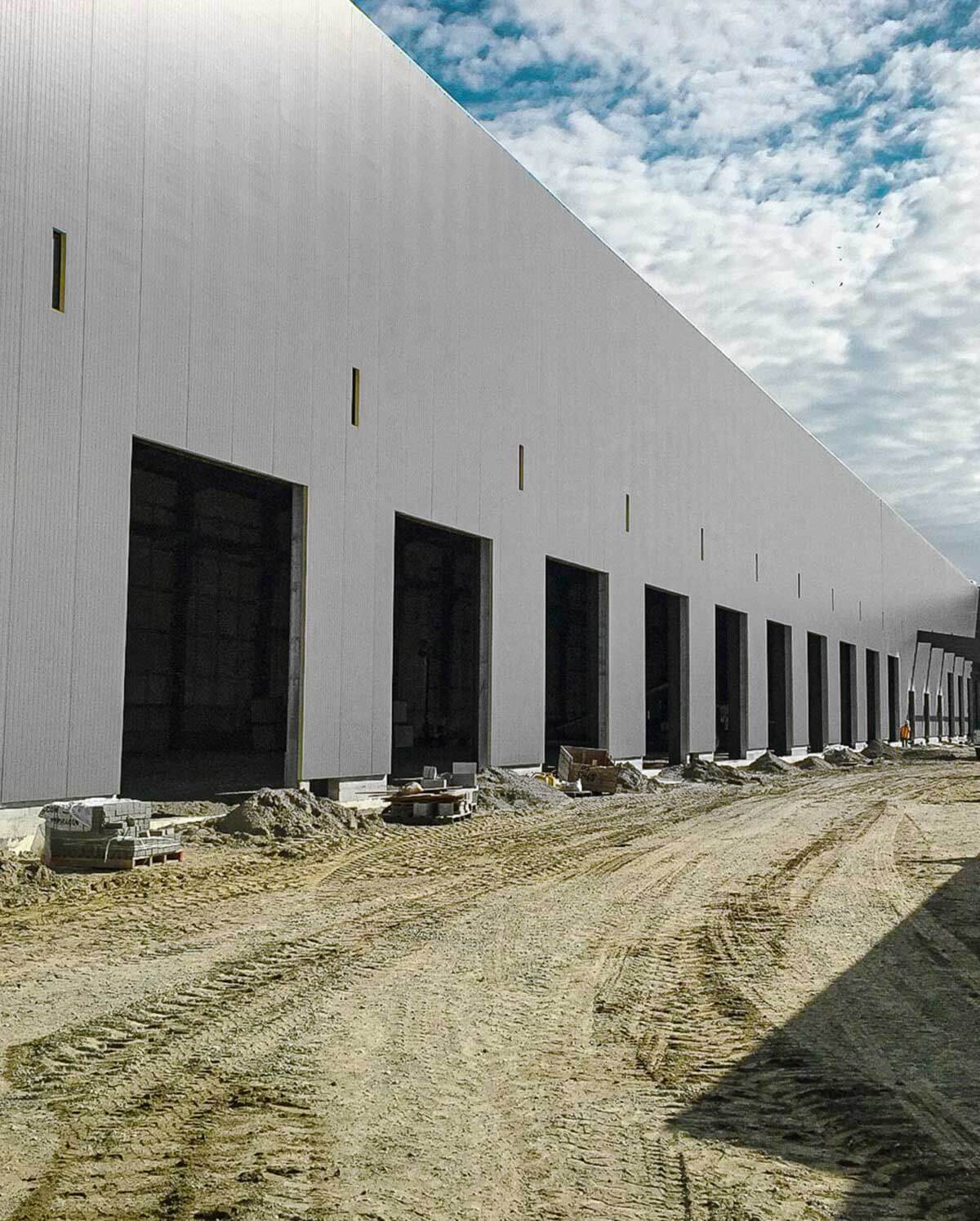

Edge Wall Panels - Smooth

Summit panels

Edge Wall Panels - Light Embossed

Summit panels

Edge Wall Panels - Heavy Embossed

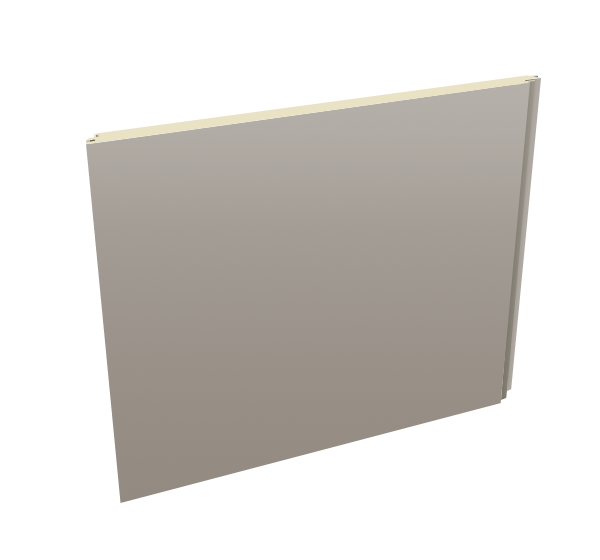

Leading Edge - Smooth panels are produced with a standard smooth steel face. This provides a flat, smooth face, adding a clean look to the exterior.

  • COVERAGE WIDTH: 42” (1067mm)
  • PANEL LENGTHS: 8’ TO 32’ (2438mm to 9754mm)
  • EXTERIOR FACE: 22ga Flat Smooth galvanized G-90 (Z275) pre painted steel
  • INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options may be available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50

Leading Edge Wall - Light Embossed panels are produced with a standard light embossed flat steel face. This provides added subtle visual texture to a flat panel.

  • COVERAGE WIDTH: 42” (1067mm)
  • PANEL LENGTHS: 8’ TO 32’ (2438mm to 9754mm)
  • EXTERIOR FACE: 22ga Flat Light Embossed galvanized G-90 (Z275) pre painted steel
  • INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50

Leading Edge - Heavy Embossed - panels are produced with a standard heavy embossed steel face. This provides added visual depth and texture to a flat panel.

  • COVERAGE WIDTH: 42” (1067mm)
  • PANEL LENGTHS: 8’ TO 32’ (2438mm to 9754mm)
  • EXTERIOR FACE: 22ga Flat Heavy Embossed galvanized G-90 (Z275) pre painted steel
  • INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50

Test based on ASTM C1363 with 40°F (4.4°C) mean temp with a temp differential of 58°F (14°C).

Standard Colours

Regal White
Old Zinc Grey
Ash Grey
Weathered Copper
Sierra Tan
Charcoal

Premium Colours

Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hatford Green
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Zinc
Slate Grey
Black
  1. Colours may not appear exactly as shown above and may vary slightly.
  2. Please confirm prior to specifying, estimating or ordering.
  3. Final colour selection should be made from a steel colour sample.
  4. Colour selection may be subject to availability.
  5. Custom colours available upon request.

TESTING: INSULATED METAL PANELS

Standard Description Results
CAN/ULC S101 Standard Methods of Fire Endurance Tests of Building Construction and Materials 15-minute stay in place
CAN/ULC S102 Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies
Flame Spread < 25, Smoke Development < 200
CAN/ULC S126 Standard Method of Test for Fire Spread Under Roof-Deck Assemblies Complies
CAN/ULC S127 Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials Flame Spread < 350 foam core w/o steel skin
CAN/ULC S138 Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration Complies
ASTM E84 Standard Test Method for Surface Burning Characteristics of Building Materials Flame Spread < 25, Smoke Development < 200
NFPA 286 Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth Complies
ASTM E72 Standard Test Methods of Conducting Strength Tests of Panels for Building Construction See Load Charts for load/span and deflection tables
ASTM E1592 Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference See Load Charts
ASTM E1646 Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems No water penetration at 20 psf pressure differential
ASTM E1680 Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems 0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E283 Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen
0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E331 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference No water penetration at 20 psf pressure differential
ASTM C518 Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F
ASTM C1363 Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F
*Standards are tested and valid for all IMP Product lines, including Edge Wall, Horizon Wall, and Skyline Roof panels. 2020

WALL LOAD SPAN TABLES

  • PRODUCT: Insulated Wall Panel
  • PROFILE: Mesa or Smooth
  • SERIES: Edge, Horizon
  • GAUGE: 26ga or heavier
  • FINISHED: Embossed or Smooth
Panel Thickness Design Criteria PSF
    4' 5' 6' 7' 8' 9' 10' 11' 12' 13' 14'
2" Thick (See Table Note #3) Bending/Shear 93 59 41 30 23 18 15 12 10
  Deflection (L/180) 47 41 33 27 22 19 16 14 12
  Connection 42 35 33 26 22 19 16 15 13

3" Thick Bending/Shear 126 101 84 68 52 41 33 27 23
  Deflection (L/180) 94 77 68 58 34 32 29 19 17
  Connection 57 45 38 33 29 25 23 20 19

4" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

5" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

6" Thick Bending/Shear 168 134 112 84 64 51 41 34 29 24 21
  Deflection (L/180) 110 101 92 79 67 57 49 42 37 32 29
  Connection 57 45 38 33 29 25 23 20 19 17 16

TABLE NOTES:

  1. Allowable loads were derived from tests conducted in accordance with ASTM E1592 and ASTM E72.
  2. Allowable loads are calculated with a factor of safety of 2.0 for bending and shear.
  3. Connection strengths reflect a standard fastener pattern - (@) 1/4” - 14 self drilling screw into minimum 14ga substrate. Other substrates must be designed separately. 2” wall panel utilize a flat clip. All other thicknesses utilize an angle clip.
  4. Fastener capacity is based on manufacturer pullout/pullover data and are calculated with a safety factor of 3.0.
  5. Allowable loads assume a minimum bearing of 2”.
  6. Thermal Effects were not considered in analysis.
  7. The structural capacity of the supporting members were not considered.
  8. Bending/Shear and Deflection for 5” and 6” panels based on 4” capacity.

PANEL WEIGHTS & LENGTHS TABLE

  • Width: 42”
  • Profile: Mesa
  • Insulation Thickness: 2”, 3”, 4”, 5”, 6”
  • Exterior Facing: 22ga
  • Interior Facing: 22ga, 24ga, 26ga
  • Available Finish: Emboss, Light Emboss

Panel Weights (PSF)

Panel Thickness (in.) Panel Width (in.) PSF
    26/26 24/26 22/26 26/24 24/24 22/24 26/22 24/22 22/22
2 42 2.23 2.48 2.73 2.48 2.73 2.98 2.73 2.98 3.23
3 42 2.44 2.69 2.94 2.69 2.94 3.19 2.94 3.19 3.44
4 42 2.65 2.90 3.15 2.90 3.15 3.40 3.15 3.40 3.65
5 42 2.85 3.10 3.35 3.10 3.35 3.60 3.35 3.60 3.85
6 42 3.06 3.31 3.56 3.31 3.56 3.81 3.56 3.81 4.06

Maximum Length based on colour (ft)

Panel Thickness (in.) Panel Width (in.) Edge 22ga Wall* Horizon 26ga/26ga Wall Skyline 24ga/26ga Roof
    Light Medium Dark Light Medium Dark Light Medium Dark
2 42 25' 25' 20' 38' 25' 16' 47' 36' 24'
3 42 30' 30' 20' 45' 35' 25' 50' 38' 30'
4 42 30' 30' 25' 50' 38' 28' 52' 41' 32'
5 42 32' 30' 25' 52' 41' 30' 52' 44' 34'
6 42 32' 30' 25' 52' 44' 32' 52' 47' 36'

*Smooth or Embossed

Light = Regal White

Medium = Sierra Tan, Parchment, Silver Metallic

Dark = All others

Based on 5’ support spacing for walls & 4’ support spacing for roofs

*Smooth or Embossed

Subject to change without notice. Please refer to our website, www.ubuildsb.com for current information.

Summit panels

Skyline Roof Panels

Skyline Roof panels are produced with a standard Mesa profiled non-embossed smooth steel face. These roof panels are an economical option for industrial and commercial projects. The 2” Standing seam is mechanically folded and incorporates a hidden fastened clip.

  • COVERAGE WIDTH: 42” (1067mm)
  • PANEL LENGTHS: 10’ to 52’ (3048mm to 15850mm)
  • EXTERIOR FACE: 22ga, 24ga, or 26ga Mesa Smooth galvanized G-90 (Z275) pre painted steel
  • INTERIOR FACE: 22ga, 24ga, or 26ga Mesa profile in Smooth or Light Embossed finish galvanized G-90 (Z275) pre painted steel in Regal White. Other colour options are available.



THICKNESS 2” 3” 4” 5” 6”
R-VALUE* 16.67 25 33.33 41.67 50

Standard Colours

Regal White
Old Zinc Gray
Ash Grey
Weathered Copper
Sierra Tan
Charcoal

Premium Colours

Parchment
Champagne Metallic*
Mocha
Bronze
Dark Bronze
Copper Penny*
Terra Cotta
Colonial Red
Retro Red
Hemlock Green
Forest Green
Hatford Green
Silver Metallic*
Twilight Blue
Regal Blue
Weathered Zinc*
Old Town Zinc
Slate Grey
Black
  1. Colours may not appear exactly as shown above and may vary slightly.
  2. Please confirm prior to specifying, estimating or ordering.
  3. Final colour selection should be made from a steel colour sample.
  4. Colour selection may be subject to availability.
  5. Custom colours available upon request.

TESTING: INSULATED METAL PANELS

Standard Description Results
CAN/ULC S101 Standard Methods of Fire Endurance Tests of Building Construction and Materials 15-minute stay in place
CAN/ULC S102 Standard Method of Test for Surface Burning Characteristics of Building Materials and Assemblies
Flame Spread < 25, Smoke Development < 200
CAN/ULC S126 Standard Method of Test for Fire Spread Under Roof-Deck Assemblies Complies
CAN/ULC S127 Standard Corner Wall Method of Test for Flammability Characteristics of Non-Melting Foam Plastic Building Materials Flame Spread < 350 foam core w/o steel skin
CAN/ULC S138 Standard Method of Test for Fire Growth of Insulated Building Metal Panels in a Full-Scale Room Configuration Complies
ASTM E84 Standard Test Method for Surface Burning Characteristics of Building Materials Flame Spread < 25, Smoke Development < 200
NFPA 286 Standard Methods of Fire Tests for Evaluating Contribution for Wall and Ceiling Interior Finish to Room Fire Growth Complies
ASTM E72 Standard Test Methods of Conducting Strength Tests of Panels for Building Construction See Load Charts for load/span and deflection tables
ASTM E1592 Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference See Load Charts
ASTM E1646 Standard Test Method for Water Penetration of Exterior Metal Roof Panel Systems No water penetration at 20 psf pressure differential
ASTM E1680 Standard Test Method for Rate of Air Leakage Through Exterior Metal Roof Panel Systems 0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E283 Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen
0.02 L/(s.m2) at 75 Pa
(0.004 cfm/ft2 at 1.57 psf)
ASTM E331 Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference No water penetration at 20 psf pressure differential
ASTM C518 Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
K-Factor of 0.136 BTU.in/hr.ft2. °F at 75°F
ASTM C1363 Standard Test Method for Thermal Performance of Building Materials and Envelope Assemblies by Means of a Hot Box Apparatus K-Factor of 0.12 BTU.in/ hr.ft2. °F at 39°F
*Standards are tested and valid for all IMP Product lines, including Edge Wall, Horizon Wall, and Skyline Roof panels. 2020

ROOF LOAD SPAN TABLES

  • PRODUCT: Insulated Roof Panel
  • PROFILE: Mesa
  • SERIES: Skyline
  • GAUGE: 26ga or heavier
  • FINISHED: Smooth
Panel Thickness Design Criteria 2' 3' 4' 5' 6' 7' 8'
2" Thick Bending/Shear 192 128 96 77 64 49 38
  Deflection (L/240) 58 53 48 43 36 29 24
  Connection 65 44 33 26 22 19 16

3" Thick Bending/Shear 192 128 96 77 64 49 38
  Deflection (L/240) 58 53 48 43 36 29 24
  Connection 65 44 33 26 22 19 16

4" Thick Bending/Shear 291 224 168 134 112 96 84
  Deflection (L/240) 98 95 92 90 76 63 53
  Connection 65 44 33 26 22 19 16

5" Thick Bending/Shear 317 286 215 172 143 123 107
  Deflection (L/240) 108 102 96 90 83 70 58
  Connection 65 44 33 26 22 19 16

6" Thick Bending/Shear 349 312 248 199 166 142 124
  Deflection (L/240) 110 110 109 109 108 92 77
  Connection 65 44 33 26 22 19 16
Back To Top
