Snow Shoes Installation And Support
Dangerous snow slides can occur when ice and snow build up on pitched roofs. Help reduce the possibility of personal injury or property damage by installing SNOWSHOES on sloped roof areas.
SNOWSHOES are molded from a tough polycarbonate polymer that can withstand heavy impacts at low temperatures. Effective on all metals, including Kynar 500r PVDF coated metal and copper. Also for use on slate, tile, EPDM rubber and PVC and TPO membranes. TPO primer is required with TPO membrane installation.
SNOWSHOES are designed with a unique ''stealth'' profile to be strong and inconspicuous. They are molded with a translucent matt finish that picks up the background color of roofing materials without refecting sunlight. Paintable if strict color matching is required.
Installation is easy with translucent DuraSil™ adhesive provided in every kit. No screws or mechanical fasteners are ever required. DuraSil bonds aggressively to all roofing materials, including Kynar finishes. It bridges irregularities and will never shrink.
GREEN STANDARDS:
- LEED 2.2 for New Construction and Major Renovations: Low Emitting Materials (Section 4.1) 1 Point
- NAHB Model Green Home Building Guidelines: 5 Global Impact Points
- VOC Content: less than 33 grams / liter ASTM D2369 EPA Method 24 (tested at 240oF / 115oC)
Colours
| Clear | Smoke |
|---|---|
| SNOWSHOE size - 6'' x 3 1/2'' x 2 3/4'' (LxWxD) | SNOWSHOE size - 6'' x 3 1/2'' x 2 3/4'' (LxWxD) |
ADVANTAGES
- Solvent free, 100% solids, will not shrink
- Bonds to Kynar 500r PVDF metals
- Good color stability, will not suntan
- Paintable (pre-installation)
- Application at temperatures as low as 40oF (4oC) and rising.
- Neutral cure. Will not promote corrosion of metals
SNOWSHOE KIT COMPONENTS
- 24 SNOWSHOES
- 3 Cartridges of DuraSil Sealant/Adhesive
- 1 Pair of gloves
- 1 Applicator stick
- 1 Application guide
Step 1. Remove all surface contamination such as dirt, oil, caulking, and roof mastics from bonding area. Clean bonding surface with alcohol. New galvanized steel may require a vinegar scrub to remove protective wax coating. Wipe area dry before bonding.
Step 2. Mark position of each part before starting installation. Lay out SNOWSHOES with a tape measure in two staggered lines, approximately two feet apart horizontally and two feet apart vertically. To help prevent ice dams, set first row no less than one foot above plane of exterior wall.* (Refer to page 3)
Step 3. Roofs with a 6/12 pitch or greater require a third staggered row of SNOWSHOES. Also, if the distance from roof edge to peak is thirty feet or greater (regardless of slope), two additional staggered rows of SNOWSHOES should be installed at the midpoint. It is also recommended that SNOWSHOES be installed over all doorways and roof valley areas for added protection.

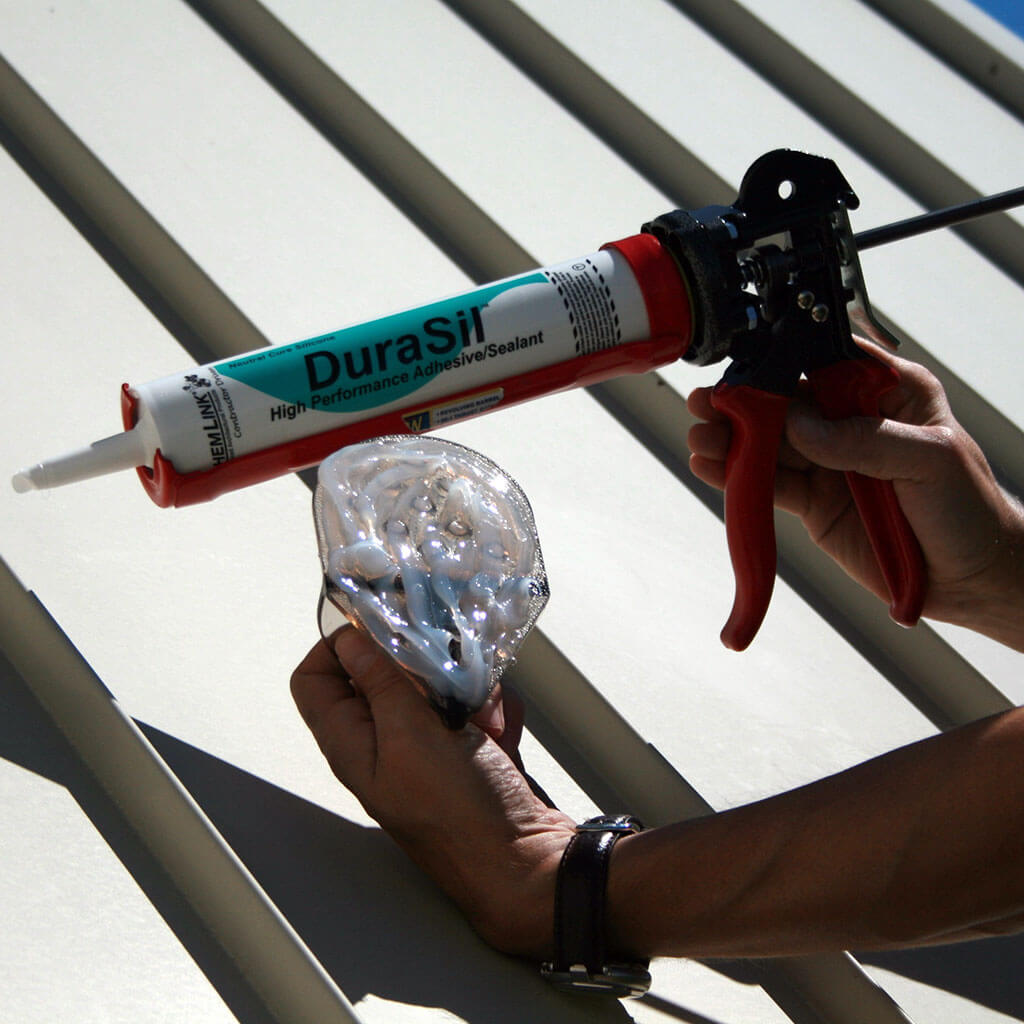

Step 4. Apply enough DuraSil adhesive to coat entire bottom of SNOWSHOE. Evenly tool adhesive with wooden applicator, so that a sufficient amount will bridge all gaps on textured surface.
Step 5. Press SNOWSHOE firmly in place above positioning mark with pointed end down. Press until excess adhesive is uniformly squeezed out around edges and through all vent holes. Transfer excess adhesive to bottom of next SNOWSHOE.
Step 6. Apply a small bead of DuraSil adhesive around perimeter of SNOWSHOE to seal edges.
Step 7. Tool off excess adhesive from top of SNOWSHOE. Carefully tool edges with wooden applicator at a 45 degree angle to form a smooth, continuous fillet.
At least three days of 40°F (4°C) are required for DuraSil adhesive to set. Depending on temperature, SNOWSHOE installations develop full strength in seven to fourteen days.
SNOWSHOE™ KITS REQUIRED
| ROOF PITCH | ROWS REQUIRED | COVERAGE PER KIT (24 SHOES) |
|---|---|---|
| 5/12 or Less | 2 | 24 Lineal Feet |
| 6/12 or Greater | 3 | 15 Lineal Feet |
| 30′ distance or greater between the ridge and eave edge regardless of pitch | 5 | 8 Lineal Feet |
ADDITIONAL ROWS OF SNOWSHOES
Regardless of the slope of the roof, if the distance from the edge to the peak is thirty feet or greater, two more staggered rows of SNOWSHOES shall be installed at the midpoint of the roof. The SNOWSHOES shall be staggered two feet apart horizontally and two feet vertically as described above.
DOORWAYS
It is recommended that at least two additional rows of SNOWSHOES be placed above the top row of SNOWSHOES (near the bottom of the roof), over all doorways, extending past the doorway width a minimum of two feet on both sides.
DISCLAIMER
*Westman Steel is not responsible for determining the structural integrity or live load capacity of any roof on which SNOWSHOES are installed. That service shall be conducted by an architect or consultant.
Our snow guards are designed to help keep snow and ice from avalanching off the roof all at once causing damage to structures, landscaping, vehicles and people below. When more snow than expected accumulates on the roof, it should be removed to avoid damage to the roof, the building structure and anything below.
